The Model HS-1200 Heat Sealer is ideal for a variety of applications including material formulation testing, extruded film evaluation, quality control testing and production floor sealing.

Perfect for a broad range of industries including film manufacturers, converters, and consumer product manufacturers / packagers.  This heat sealer is a single-zone sealer, offering control of seal temperature, seal pressure, and sealing time; and is foot switch operated for convenience.



The HS-1200 is a constant-heat style bar sealer with fully adjustable heating timer, adjustable seal bar pressure and adjustable temperature for the sealing bars.  The level of heat is determined by varying the bar temperature and the heating time.



Designed to be a rugged, compact, cost-effective sealer for the quality lab or production floor. Base model includes fixed upper-heat heating bar.  Options include multiple sizes of Upper Heating Bars/Jaws from 1/8 inch to 1 inch or 25 mm, Lower-Heat, and Cold Seal Bars.



Seal Area: 12 in. x 25 mm (30.5 cm x 2.5 cm) or 12 in. X 1 inch, Contact Factory for other sizes.

Test instruments for quality control, Built Around You

Download Brochure

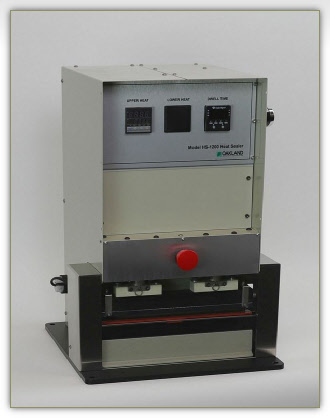

 Model HS-1200 Laboratory Heat Sealer



Sample Preparation

Back

TM

Loading a sample into the heat sealer for testing.

The HS-1200 Heat Sealer is available in (3) bar-pressure control versions - The Model HS-1200-APS with a side-mounted pressure regulator and gauge for “Set and Forget” pressure setpoints (drawing model upper right); the Model HS-1200-APF with a front-panel mounted pressure adjustment knob and dial-type 0 - 100 psi analog pressure gauge (drawing model center right); and the HS-1200-DPF with a front-panel mounted pressure adjustment knob, digital pressure display, and short-cycle indicator and reset button (drawing model lower right). Both the HS-1200-APF and the HS-1200-DPF retain the side-mounted pressure regulator and gauge for course pressure settings.
